Front Page

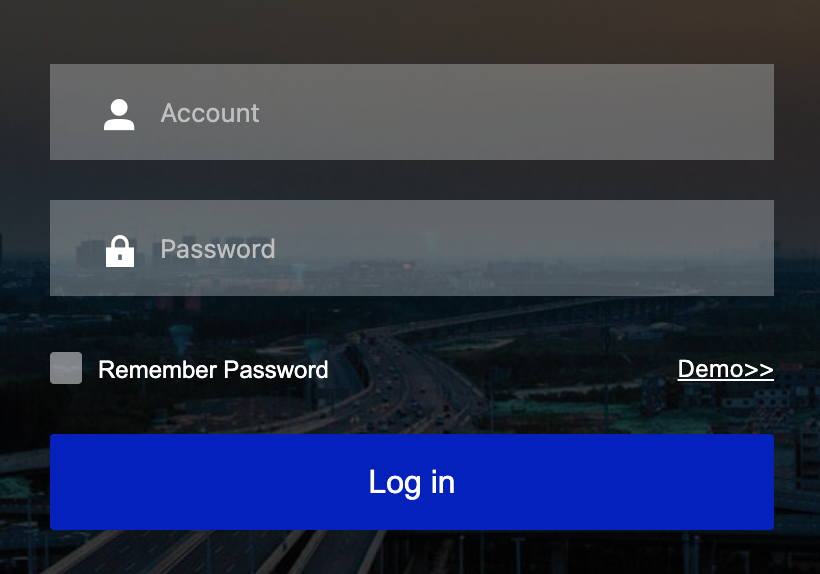

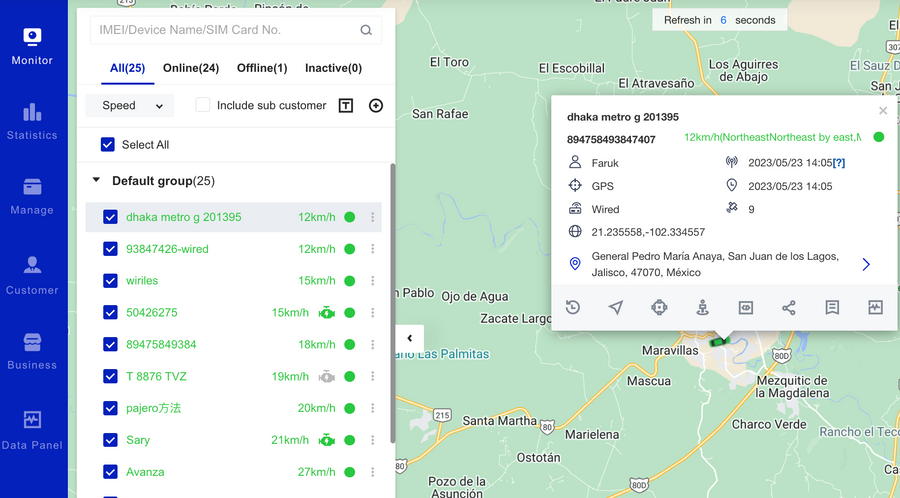

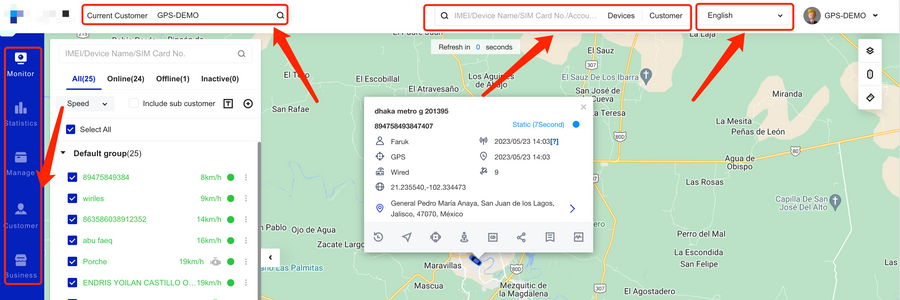

1. After successfully logging in to the system, enter the home page of the platform, and you can view the following menu bars on the left: monitoring, statistics, management, customer, dealer management, data panel

2. Top navigation bar

2.1. Current customer: Display the name of the current store. You can also search for the store you need in the search bar. Click Jump to view the store's equipment list and other information

2.2. Device search box: This search box supports quick search for device number, device name, SIM card number, and account name, and also supports fuzzy search. Click on the device on the right to display the search result as vehicle equipment details, and click on the customer to display the account to which the device belongs.

2.3. Language switching box: the platform supports switching languages on the home page, which is convenient for customers' daily use needs. The language selection box can be synchronized with the language selection box on the login page;

3. Device list: You can view all devices in the store, display the number of all devices, the number of online devices, the number of offline devices, and the number of inactive devices.

3.1. Device search box: enter the device number/device name/SIM card number in the search box, click the search button to view the location and details of the device

3.2. Hidden device list button: Click this button to hide the device list and display the vehicle location information on the map completely; 3.3. Include sub-accounts: Click to check the Include sub-account check box to display the devices of sub-accounts in the device list;

3.4. New group: Click to create a new group in the device list, allowing customers to group similar devices;

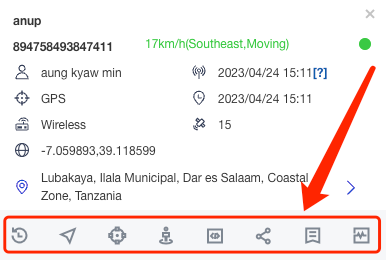

3.5. Device function area: playback, track, command, details, move to, view report

4. This area is the map control area, from top to bottom: map switching, real-time traffic conditions, map ranging

4.1. Map switching: the platform supports Google Maps, Google Satellite Maps, and OSM Maps;

4.2. Real-time road conditions: the map can display road conditions and road information in real time;

4.3. Map distance measurement: Click the distance ruler to calculate the distance between two points on the map;

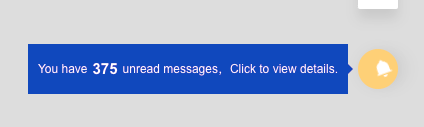

5. Alarm bell: It can display the pushed alarm information in real time, click to view the alarm processing pool of the account, can process alarm information in batches, and can also click to view the alarm address.

6. Device monitoring page

6.1. Device name: display device name and device number information;

6.2. Color status: blue means online, green means running, yellow means dormant, gray means offline.

6.3. Device information: display the name of the owner, the latest signal time of the device, positioning time, voltage/power display, ACC status, positioning method, device type, number of satellites and other information. This monitoring information can be set in the system;

6.4. Positioning address: This information shows the latest uploaded positioning address of the device

6.5. Playback: Click playback to jump to the track playback page, enter the IMEI number, select a time period to view, or select 1 day, 7 days or 10 days in the shortcut selection drop-down menu, and click the playback track to view the set vehicle track. Click Track Download to download the track you queried.

6.6. Location Tracking: Click to track and display the real-time location of the device, and the location map is refreshed every 10s.

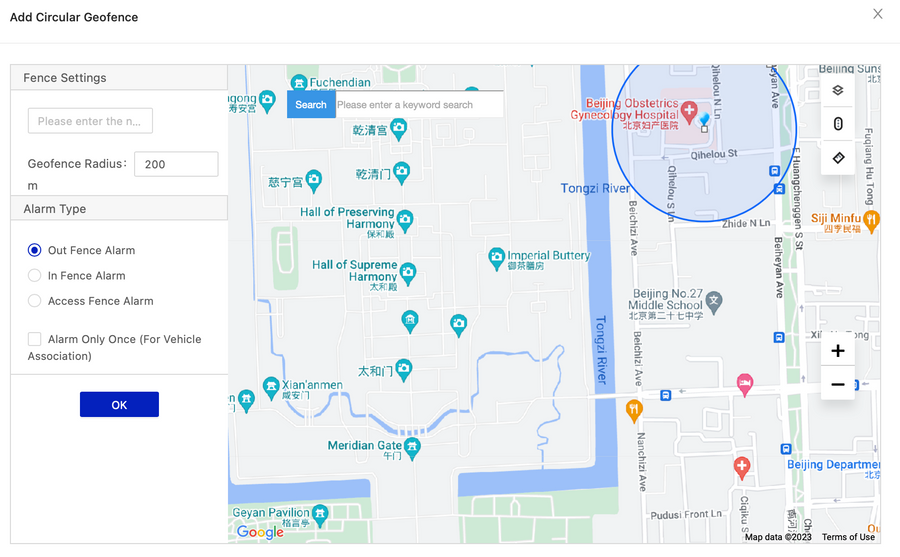

6.7. Fence settings: Click on the fence to create circular fences and polygonal fences, or to view existing fences on the device.

6.8. Street View: Click Street View to switch to the Street View mode of Google Maps, and you can view the Street View status of the current location of the device.

6.9. Instructions: Click on the command to quickly issue, you can issue commands such as remotely restarting the device, cutting off fuel and power, and displaying the command record

6.10. Location sharing: share the current device location link, which can be shared with others

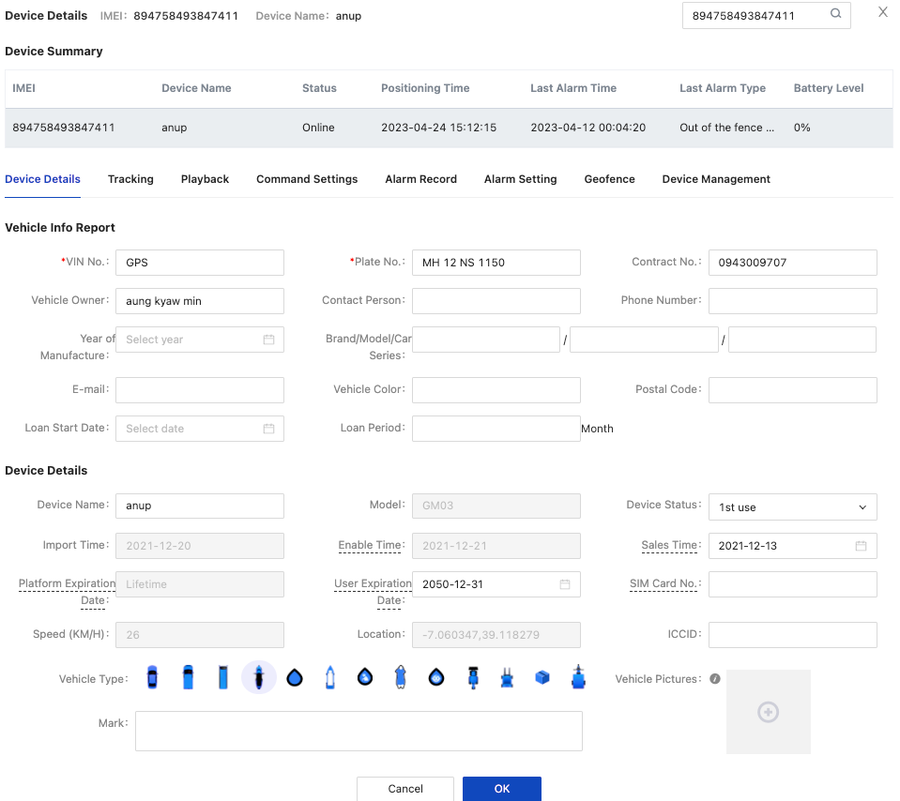

7. Equipment details: Click to jump to the details of the same vehicle equipment, display equipment information, vehicle information and equipment details, and can perform maintenance, tracking, playback, command issuance, alarm records, alarm settings, and fences for the vehicle. , equipment ownership and other operations

Statistics

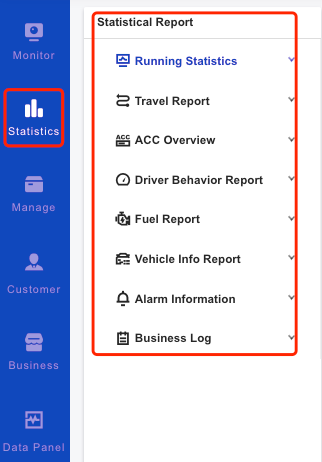

1. Click "Statistics" on the left menu bar to enter this page, where you can view vehicle operation statistics, trip statistics, ACC overview, driving behavior reports, fuel quantity statistics, vehicle information reports, alarm information, business logs, etc.

2. Operation statistics include: operation overview, mileage statistics, overspeed details, stop details, daily operation conditions, mileage maintenance statistics

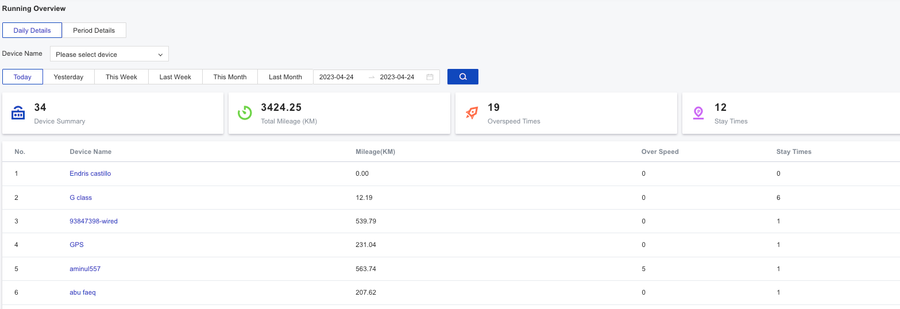

2.1. Operation overview, you can view the operation of the equipment, including equipment name, mileage, overspeed, number of stays, etc. Note: If you do not select the condition, a list of all equipment will be displayed

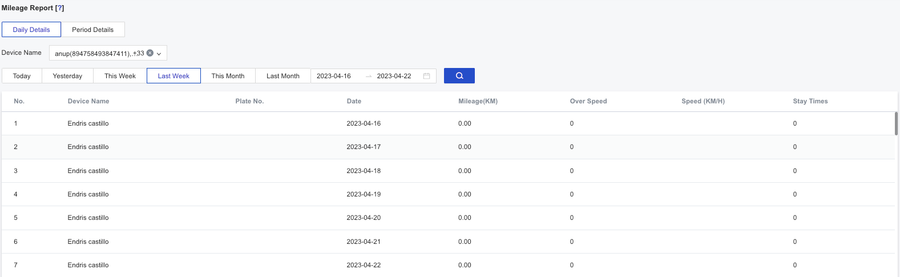

2.2. Mileage statistics: You can view daily details and period details, and perform corresponding time screening

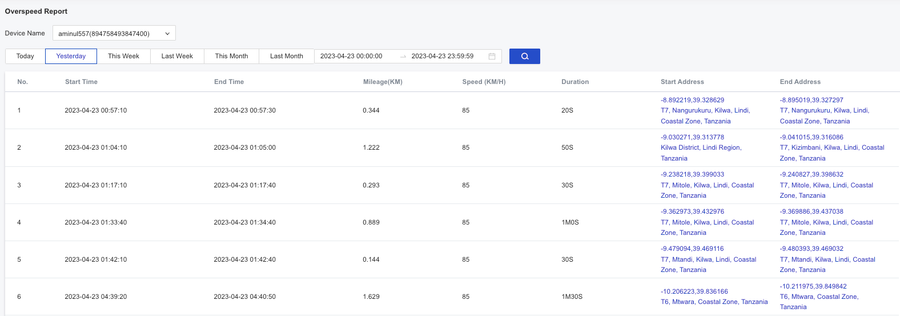

2.3. Overspeed details: You can view the overspeed situation of the device, as well as positioning time, speed, latitude and longitude and other information

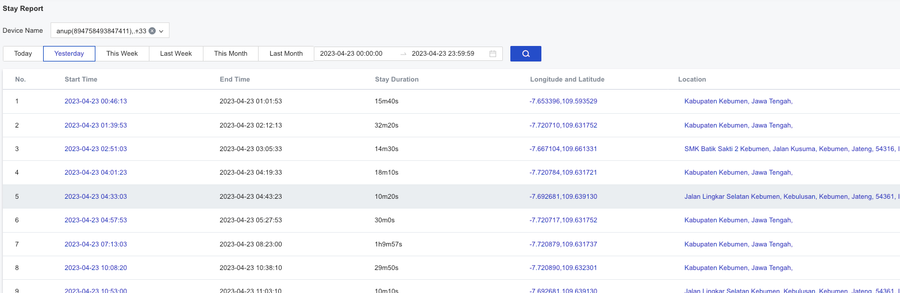

2.4. Stay details: You can check the stay status of the equipment, as well as start time, end time, stay duration, latitude and longitude and other information

2.5. Daily operation status: the operation status of the equipment on that day can be screened according to time

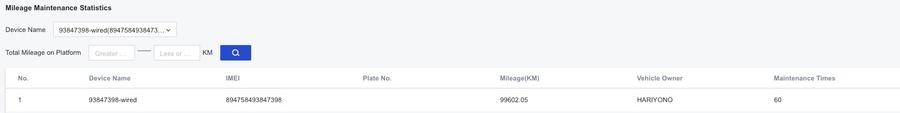

2.6. Mileage maintenance statistics: You can query the maintenance status of the equipment through the equipment name

3. Travel statistics include: travel statistics, overspeed time period statistics, offline reports

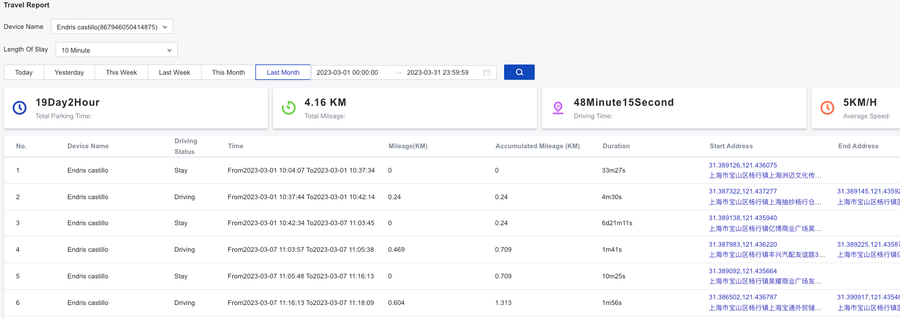

3.1. Travel statistics: You can view the detailed information of the device's travel

3.2. Overspeed time period statistics: you can view the detailed information about the overspeed of the device

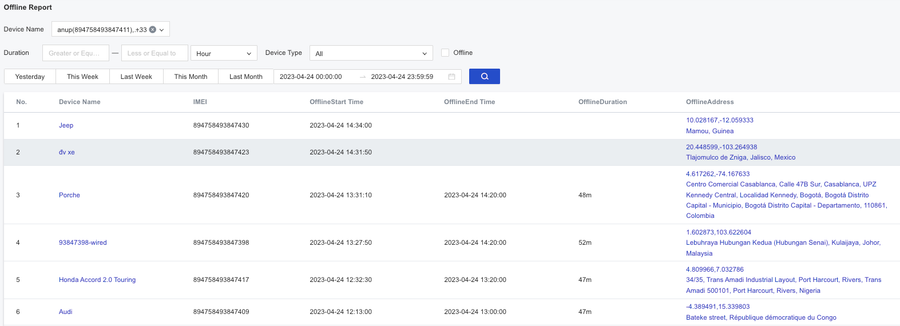

3.3. Offline report: The offline status of the device can be screened by the device name, device type, and duration, etc.

4. The ACC overview includes: ACC statistics, report of staying and not turning off

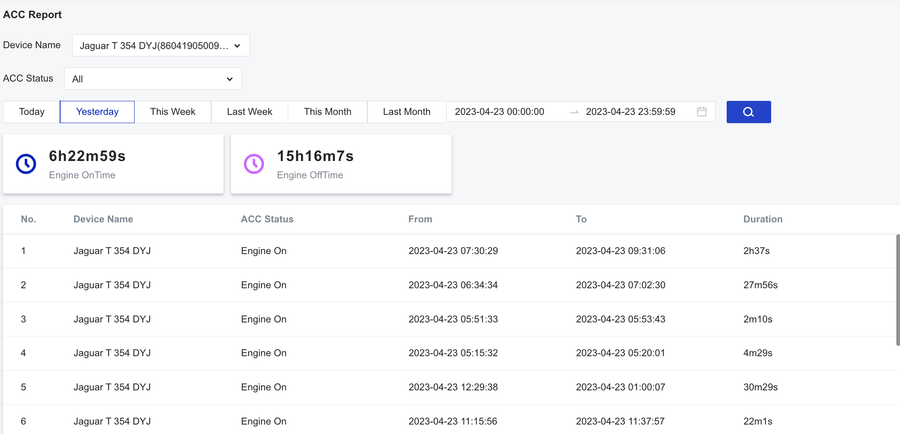

4.1, ACC statistics: View the ACC details of the device

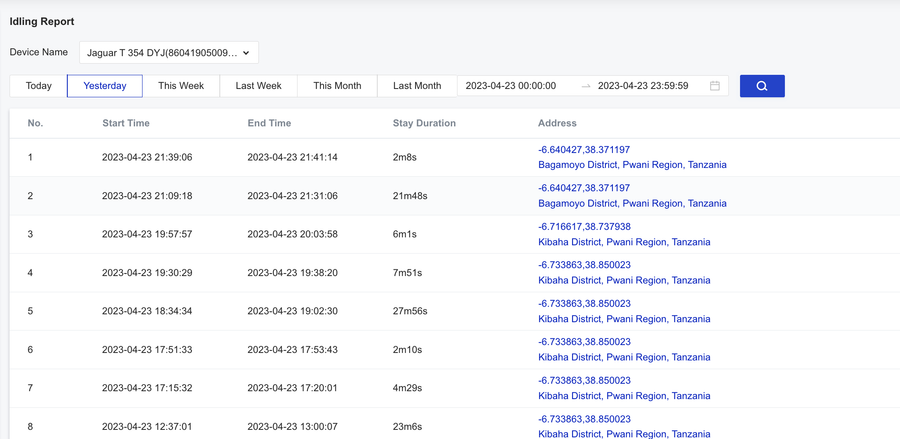

4.2. Report on staying and not turning off the flame: check the status of the staying and not turning off the device, and filter it by time

5. Driving behavior report

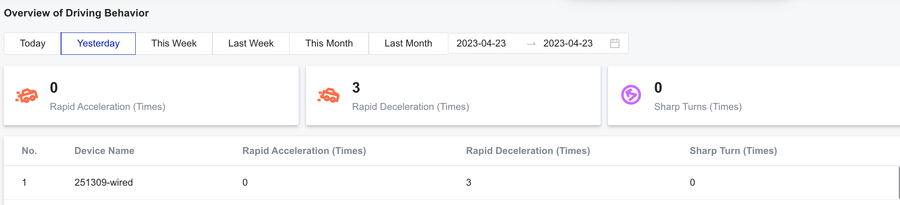

5.1. Driving Behavior Overview: Overall Driving Behavior Analysis

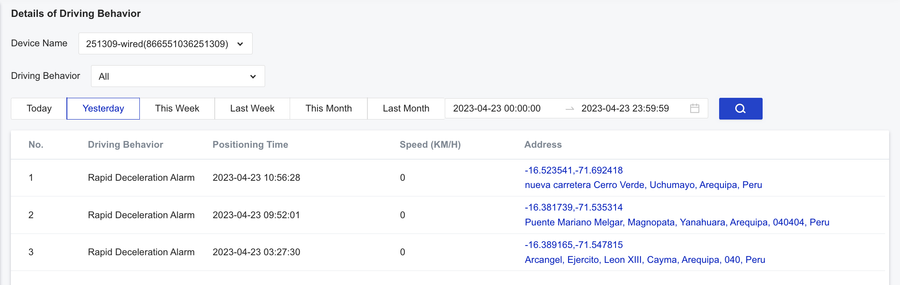

5.2. Driving behavior details: You can analyze and query the driving behavior of a single device through the device name

6. Oil Quantity Report

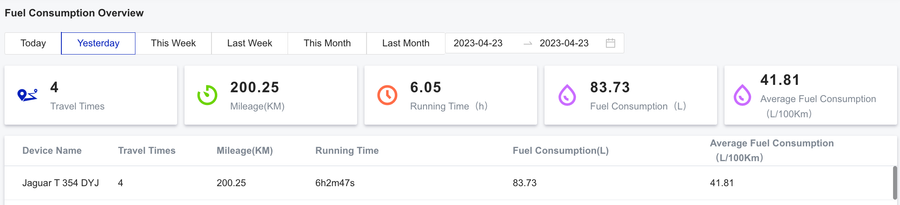

6.1. Overview of trip fuel consumption: You can check the overall fuel consumption of the equipment

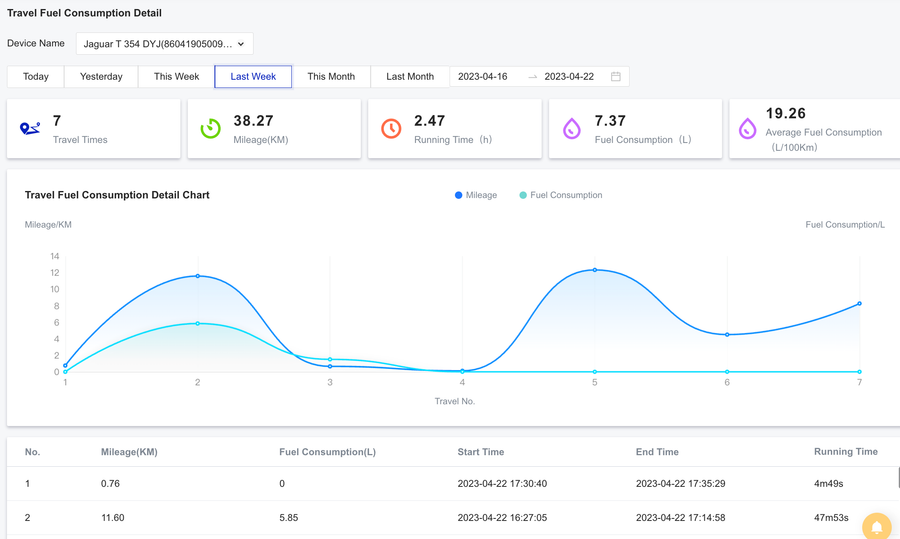

6.2. Itinerary fuel consumption details: the fuel consumption of a single device can be queried through the device name

7. Vehicle information report

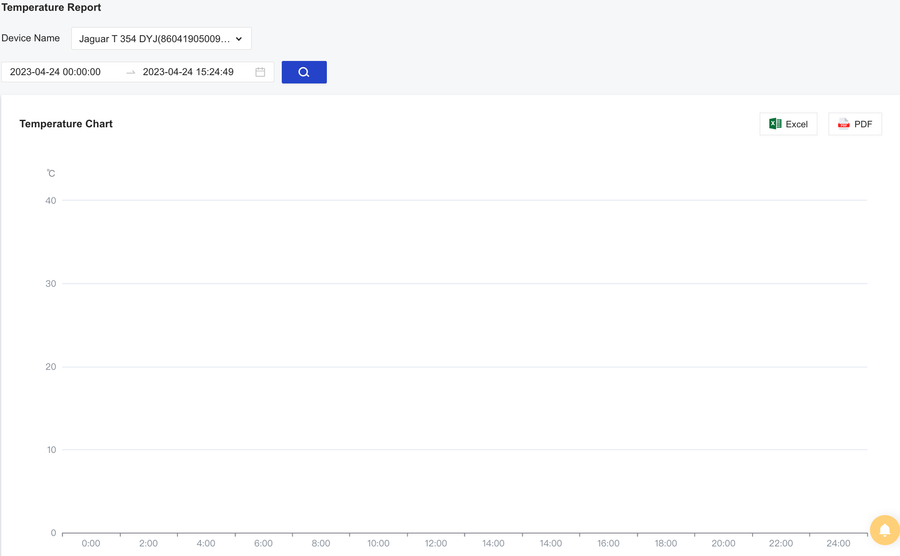

7.1. Temperature statistics: vehicle temperature monitoring

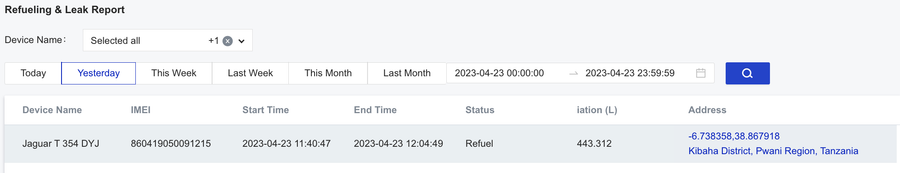

7.2. Statistics on refueling and oil leakage: You can filter the statistics of refueling and oil leakage of equipment by equipment name and time

8. Alarm information

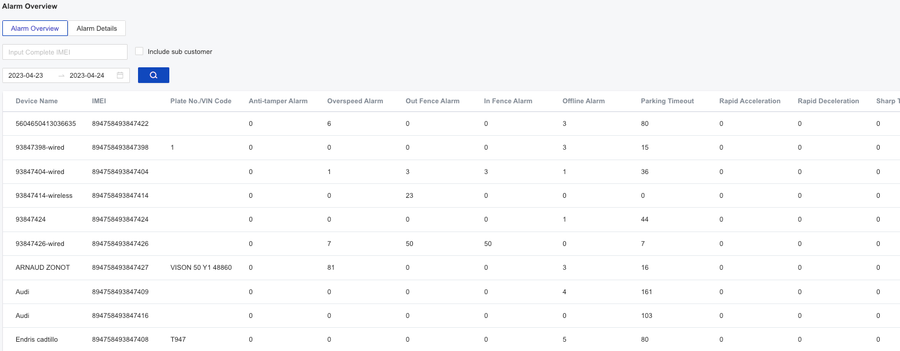

8.1. Alarm statistics: monitor the alarm information of the equipment, you can view the data of various alarm types, and you can also switch to view the alarm details

9. Business log

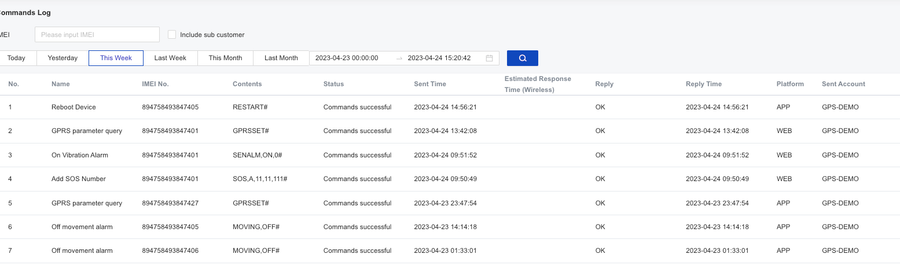

9.1. Instruction log: View the details of the operation instructions of the device, which can include subordinates and can be filtered by time

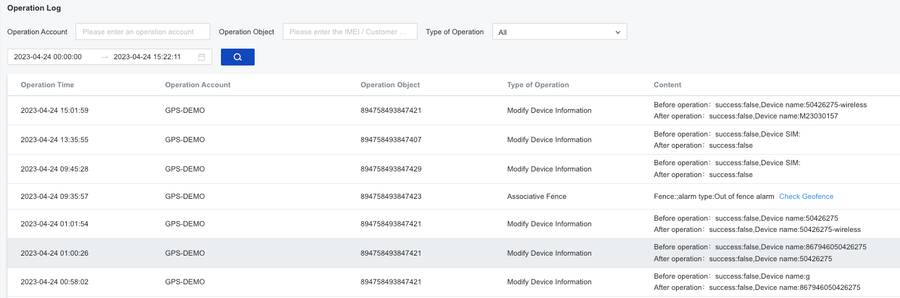

9.2. Operation log: view the operation log details of the device

Device Management

This module is used to view device management, fence management.

1. Device management: including all devices, offline device management, wireless device power statistics, vehicle load statistics, vehicle fuel tank management, device expiration reminders, device usage statistics, shared link management, account alarm configuration, email push management

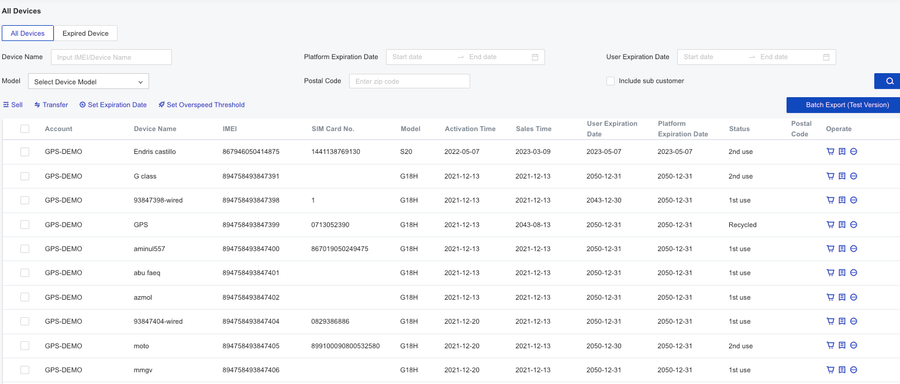

1.1. All devices: Display all device information by default, and you can also switch to view expired devices. You can filter by device name, platform expiration date, user expiration date, device model, zip code, etc., and batch devices Sales, batch transfer, batch setting expiration time, batch setting timeout speed, etc., can be exported

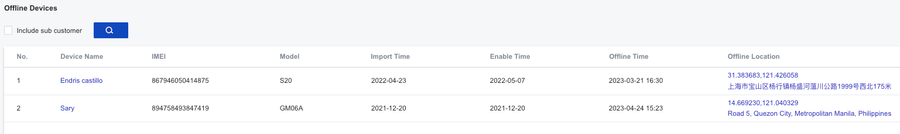

1.2. Offline device management: Offline device statistics

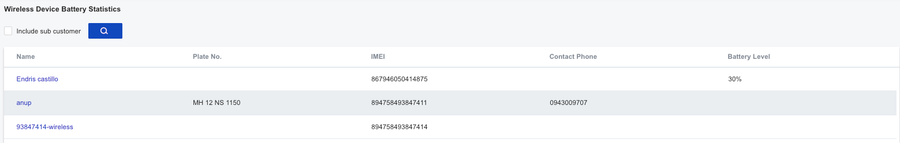

1.3, wireless device power statistics: wireless device battery information query, can choose to include the lower level

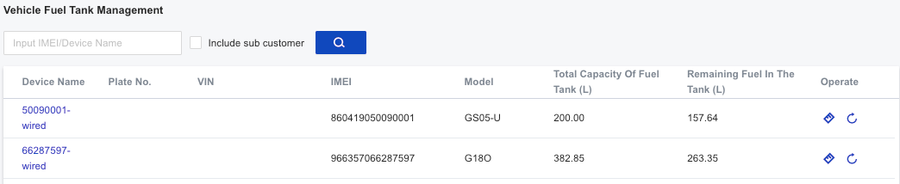

1.4. Vehicle fuel tank management: display of vehicle fuel tank information

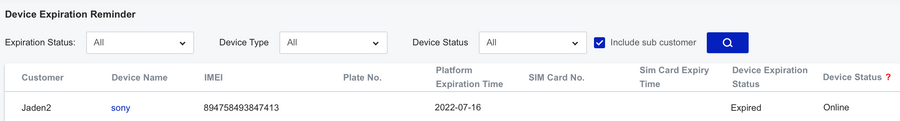

1.5. Equipment expiration reminder: You can view the expiration information of the equipment, and perform related inquiries on the equipment status, equipment type, and expiration status

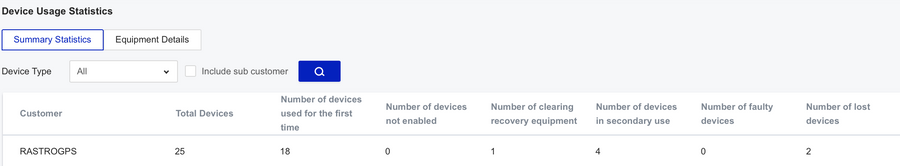

1.6. Equipment usage statistics: You can view the usage summary and usage details of the equipment

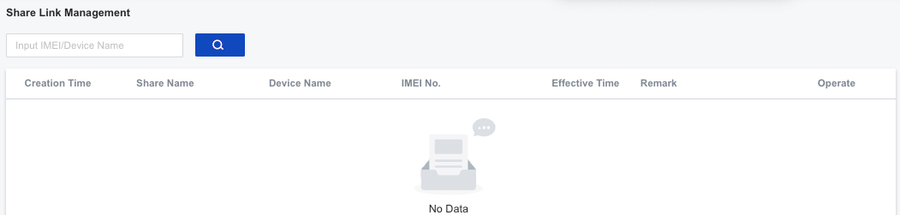

1.7. Sharing link management: This page displays in detail the creation time of the device positioning sharing link under the store, sharing name, device name, device number and other information

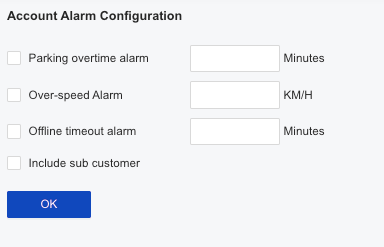

1.8. Account alarm configuration: alarm configuration rules

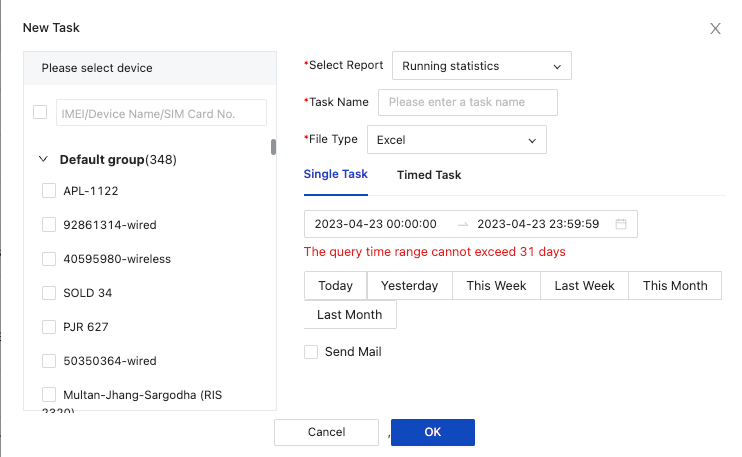

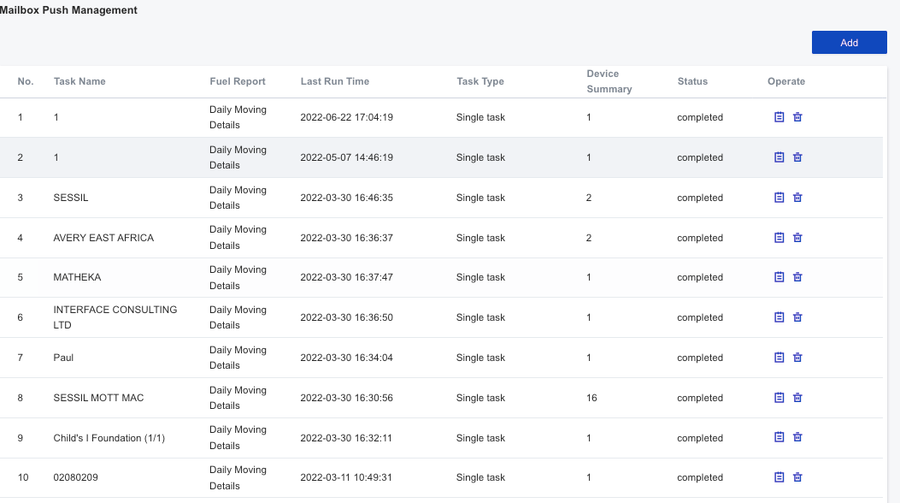

1.9. Mailbox push management: The default list displays the push record data, you can add a push task, select a device or device group, select a report, set a task name, select a file type, select a single task or a scheduled task, select to send an email, and enter an email address , you can

2. Fence management: including custom fences

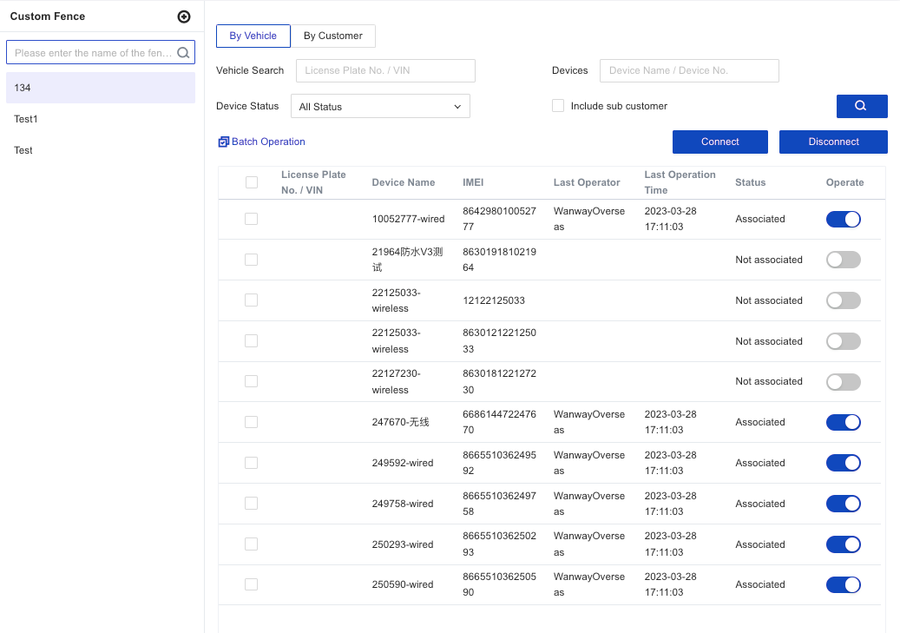

2.1. Custom fence: first add a fence, set the fence name and alarm type, and then click OK. After adding, you can associate the fence with the vehicle and the store

Customer

This module is used to view and manage customer information，The statistical dimension of the number of customers and the number of devices is based on the currently selected account, and displays all subordinate accounts under the currently selected account, the number of all devices, the corresponding changes in the number of devices, and the balance of all types of prepaid cards.

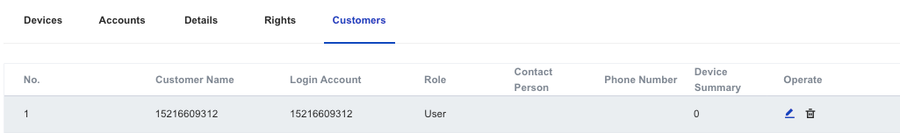

1. This function is mainly for the current account to manage and view the information of own and subordinate accounts.

2. Click the customer information list to display the corresponding customer information. You can also enter the customer name/login account in the input box for fuzzy search.

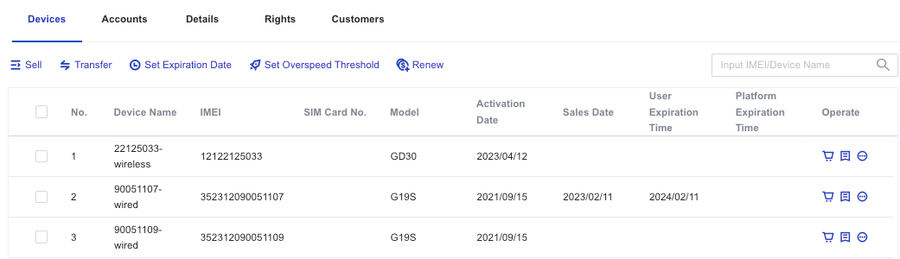

3. In the operation column, you can carry out batch sales, batch transfer, batch setting expiration time, batch setting overspeed and other detailed information of equipment.

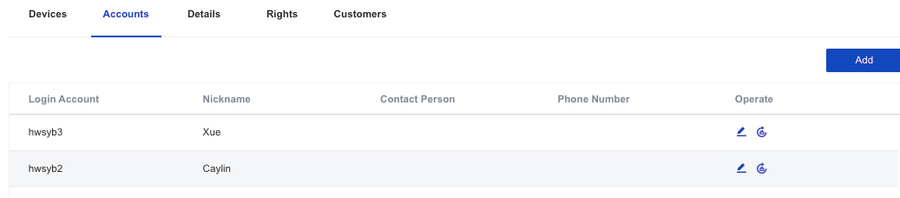

4. Account management: You can modify the account and reset the password in the list, as well as add a new account

5. Information: In the information column, you can configure account permissions, such as account roles, supported device models, and supported recharge card types.

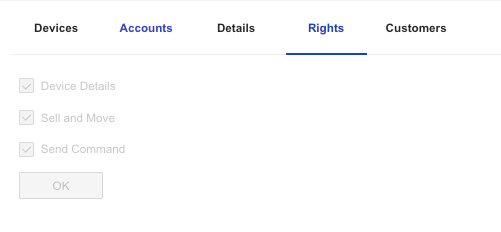

6. Permissions: The upper-level account can set permissions for the account, view device details, transfer sales, send instructions, etc.

7. General account: You can see all subordinate dealers and users, modify and delete operations. Click the export button on the far right to export the total account list.

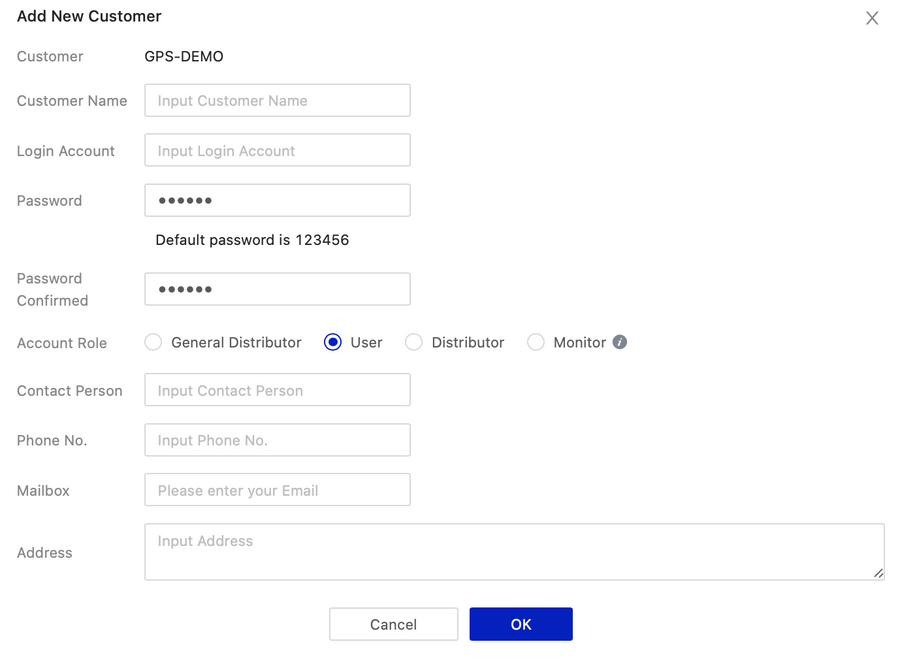

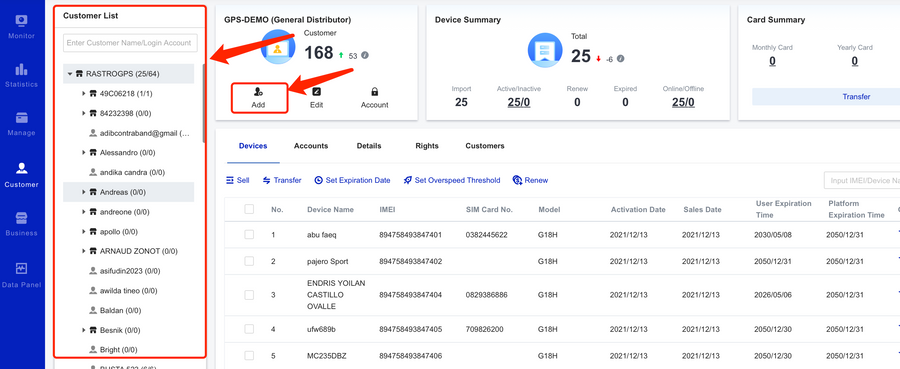

8. Add a new customer: Click on the upper right corner to add a new customer, and fill in the customer information as required.

Dealer Management

1. Dealer management includes: my business, recharge card management, equipment invoice management, third-party equipment management, and third-party equipment log 1.1. My business

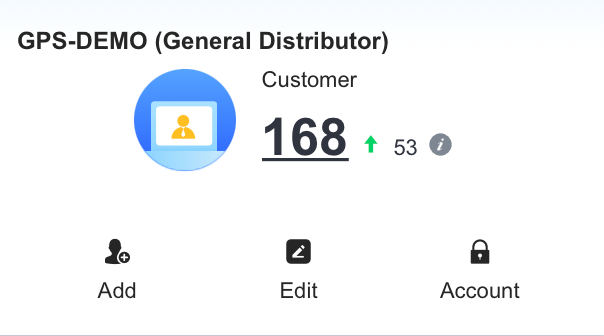

1.1.1. The total number of customers: can be added and edited, and the statistical range: from 0:00 at the beginning of the month to the present, the change in the total number of customers

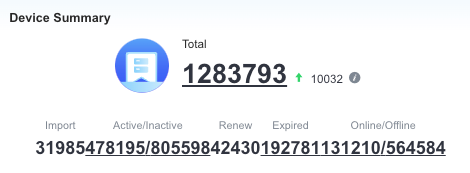

1.1.2. Quantity of equipment: Imported equipment is displayed by default as the currently selected customer, including all imported equipment of subordinates. Enabled/disabled devices are displayed by default as the currently selected customer, including all enabled and disabled devices at the lower level. By default, the renewal device is displayed as the currently selected customer, including all the subordinate devices that have been renewed with recharge cards (monthly card, annual card, one-time lifetime card, no matter how many cards are used, they are only counted once). By default, the expired equipment is displayed as the currently selected customer, including all expired equipment of the subordinates. Online/offline, by default, all online and offline devices under the currently selected account are displayed, and the statistical scope does not include, expired and unactivated devices.

1.1.3. Recharge card module: The monthly card is displayed by default as the monthly card under the selected account that includes all subordinates. By default, the annual card is displayed as including all annual cards under the selected account. By default, the lifetime card is displayed as the lifetime card that includes all subordinates under the selected account. Click the balance of monthly card, annual card, and lifetime card to jump to the recharge card management-log page.

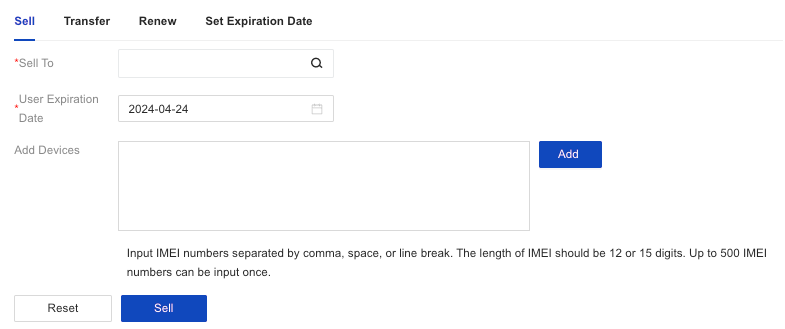

1.1.4. Functional operation: Batch sales, batch transfer, batch renewal, batch setting of expiration time, etc.

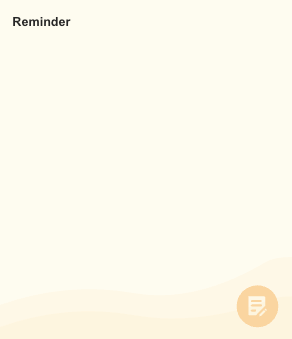

1.1.5. Reminder module: click to enter and edit content, the input characters do not exceed 500, and the page characters support sliding display.

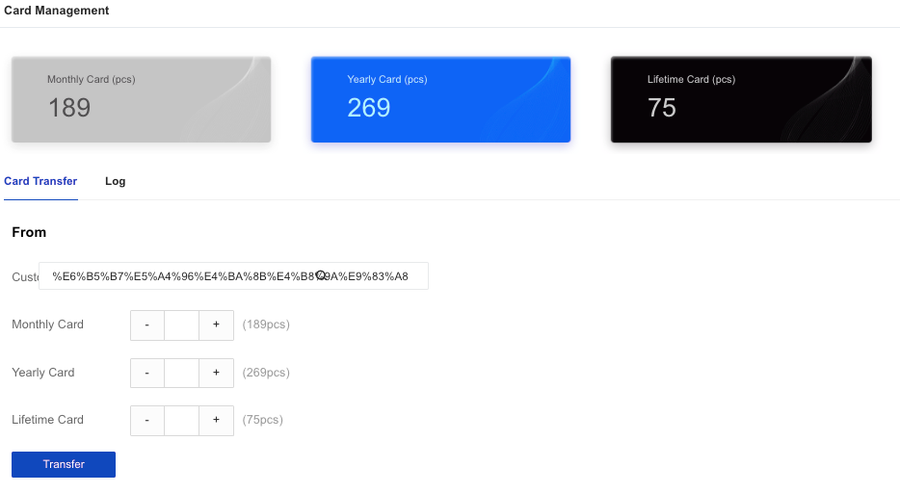

1.2. Recharge card management: You can recharge the card, transfer the card balance, check the log, etc.

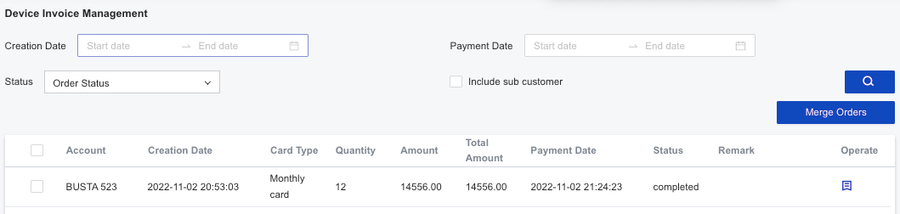

1.3. Equipment invoice management: view the invoice list, and query by date and order status

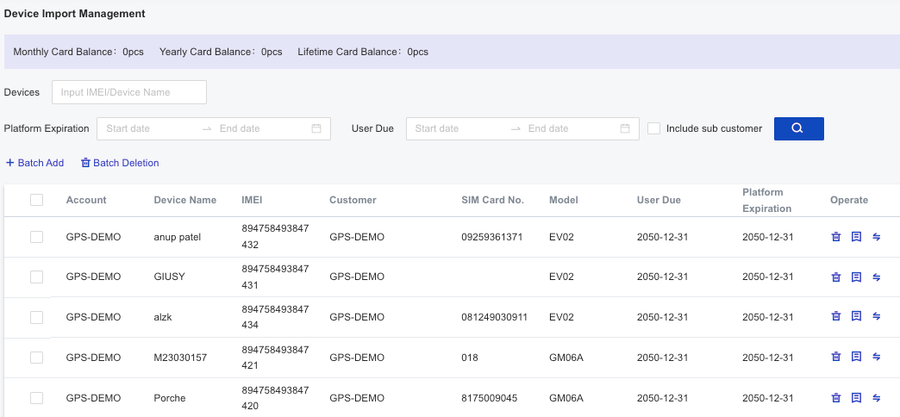

1.4. Three-party device management: The three-party device list is displayed by default, and can be queried by device number/device name and time, and devices can be added and deleted in batches.

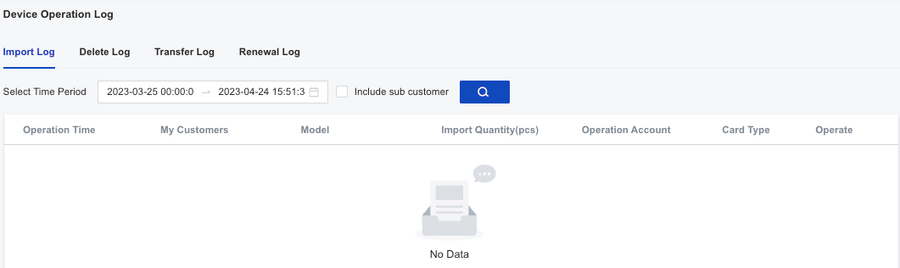

1.5. Three-party device log: log management, you can query the log content such as import, delete, transfer, renewal, etc.

Smart Evaluation

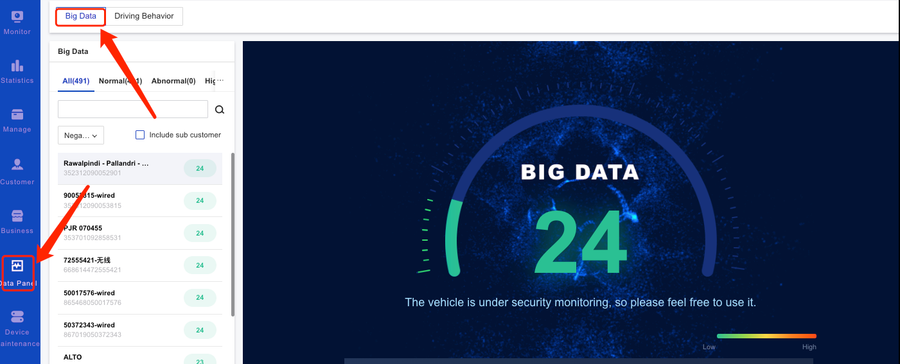

1. This module is the intelligent evaluation link of the platform. The system scores the vehicle based on information such as vehicle risk alarm, loss of contact risk, equipment history, driving behavior sharing, and mileage dimension. At the same time, the system can view equipment status, risk records, and past three-day driving conditions and time distribution. Monthly driving mileage and duration, vehicle operation status, and driving trajectory analysis can also be viewed.

Driving Behavior

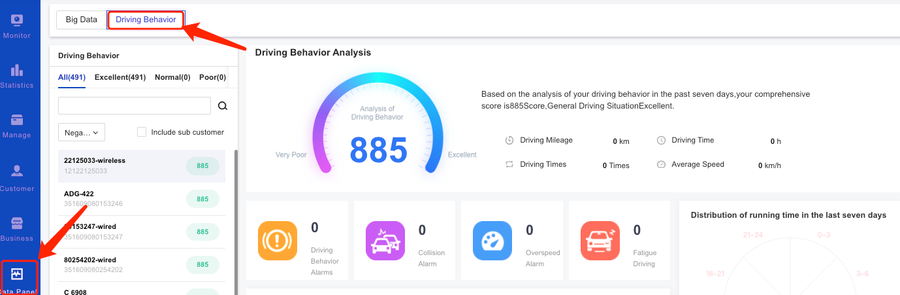

1. This module is the driving behavior score of the platform. The system scores the driving behavior of the car owner based on the analysis of the driving behavior of the vehicle in the past 7 days. This page can display the three kinds of emergency alarms, collision alarms, overspeed alarms, fatigue driving and other information of the vehicle, or display the mileage and duration

System Settings

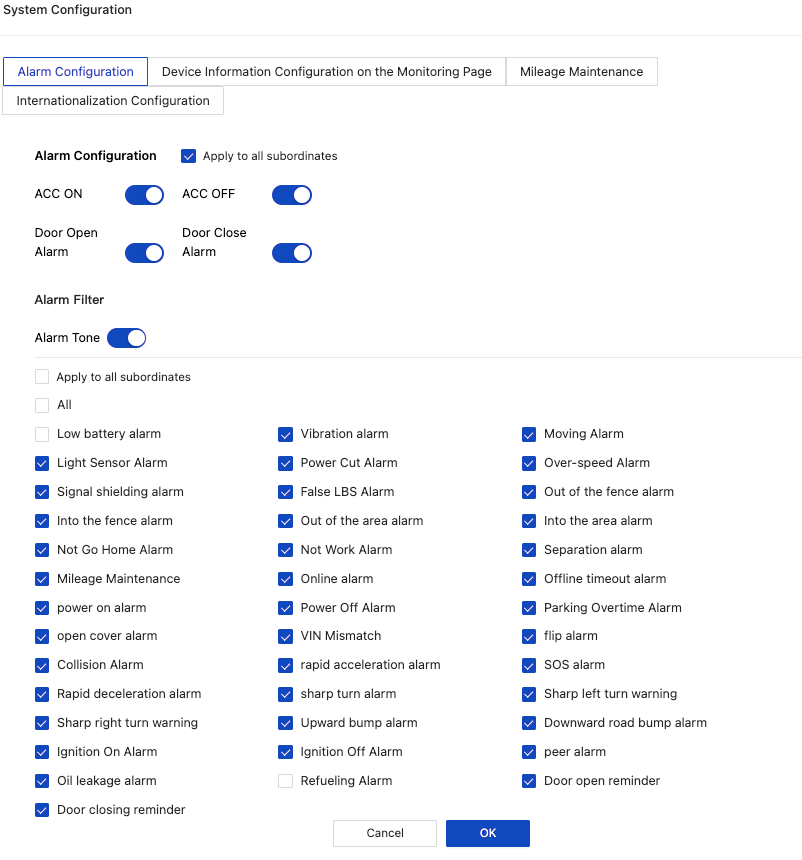

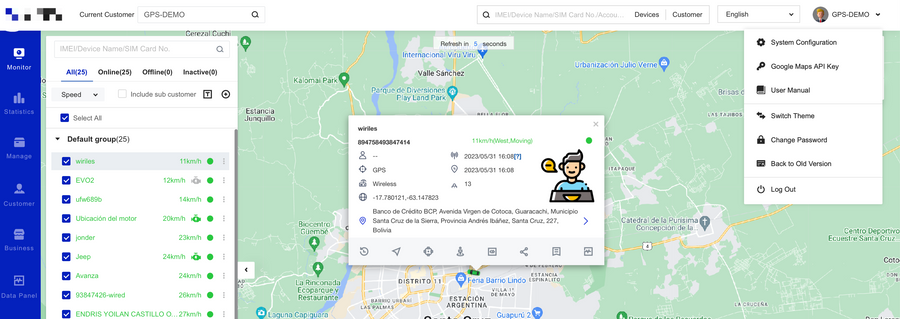

1. System Configuration: Click the drop-down arrow in the upper right corner and select System Configuration

1.1. Alarm configuration: The basic function configuration of the alarm can be selected according to the actual situation

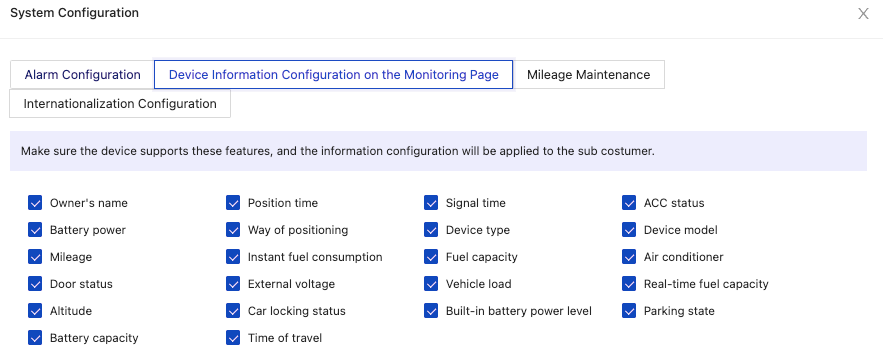

1.2. Device information configuration on the monitoring page:

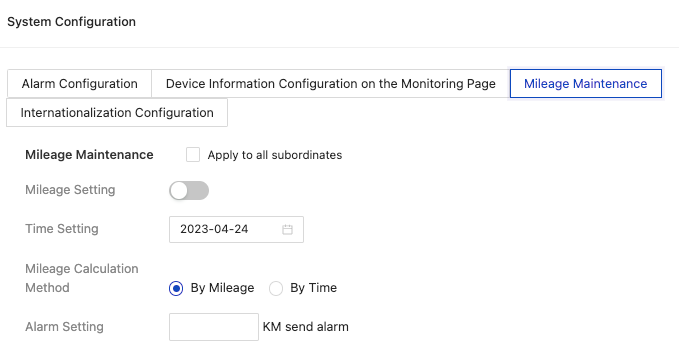

1.3. Mileage Maintenance: You can set maintenance information and alarm settings for the equipment

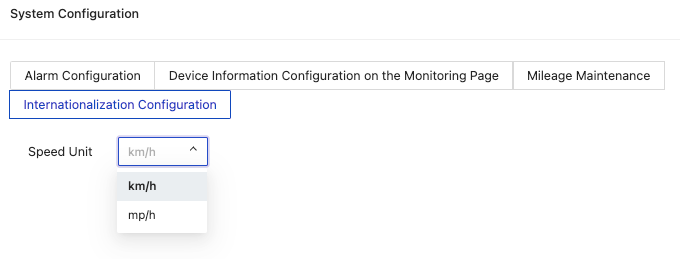

1.4. International configuration: you can configure the speed unit KM/h or MP/h

Description of Common Functions

1. Issue instructions

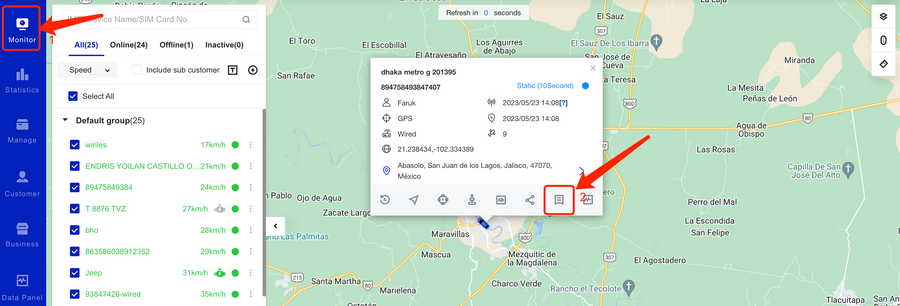

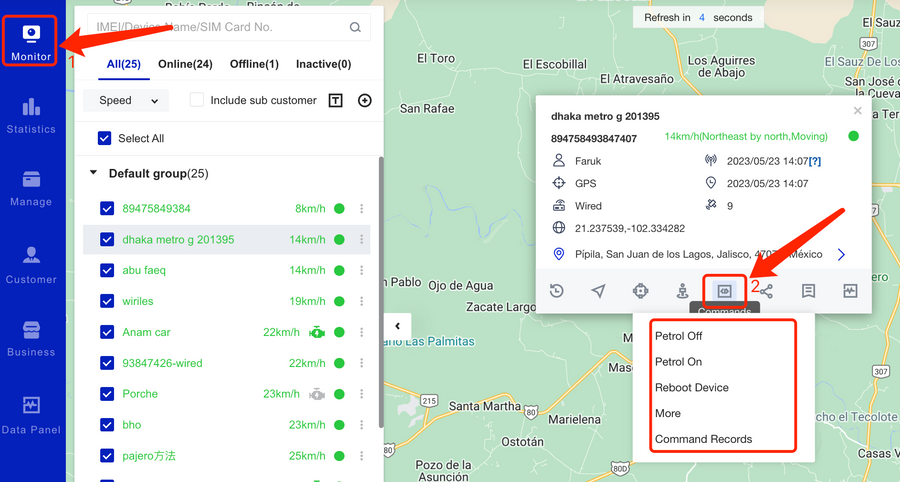

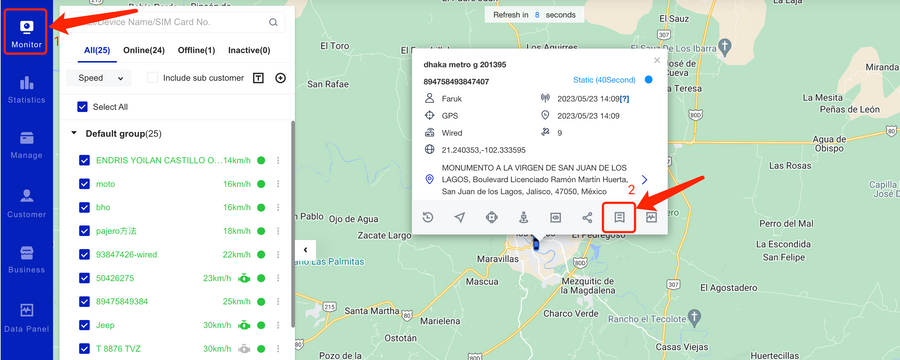

1.1. Send instructions on the monitoring page

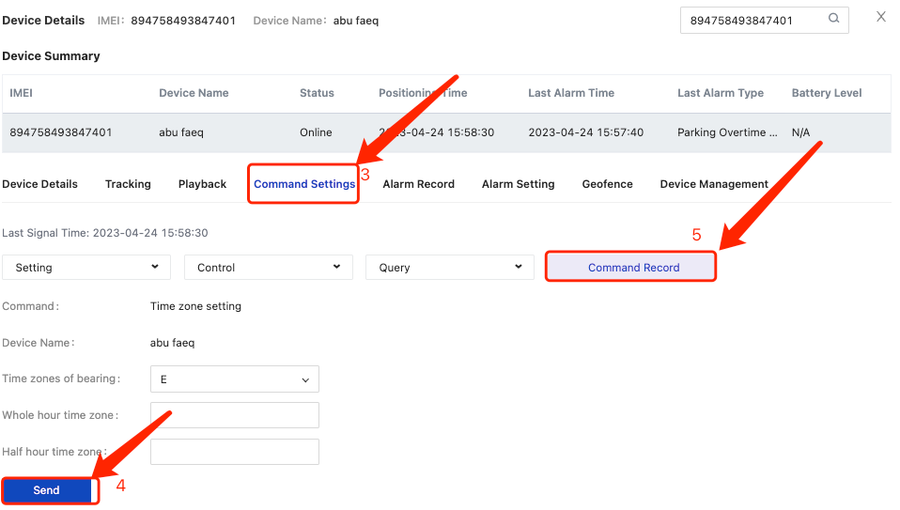

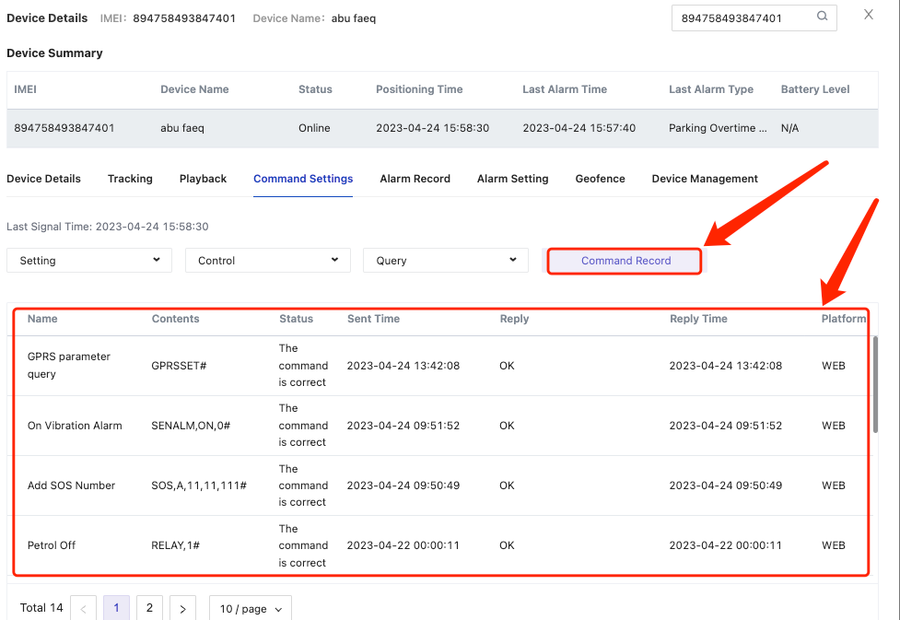

1.2. Issue instructions on the details page

command record list

2. Check the alarm

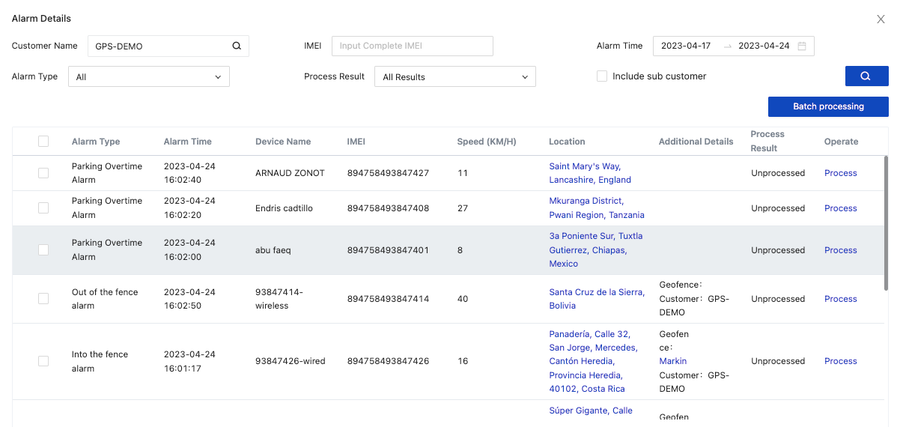

2.1. All alarms in the lower right corner of the system

It can be filtered according to customer name, device number, alarm type, processing result and other filter conditions

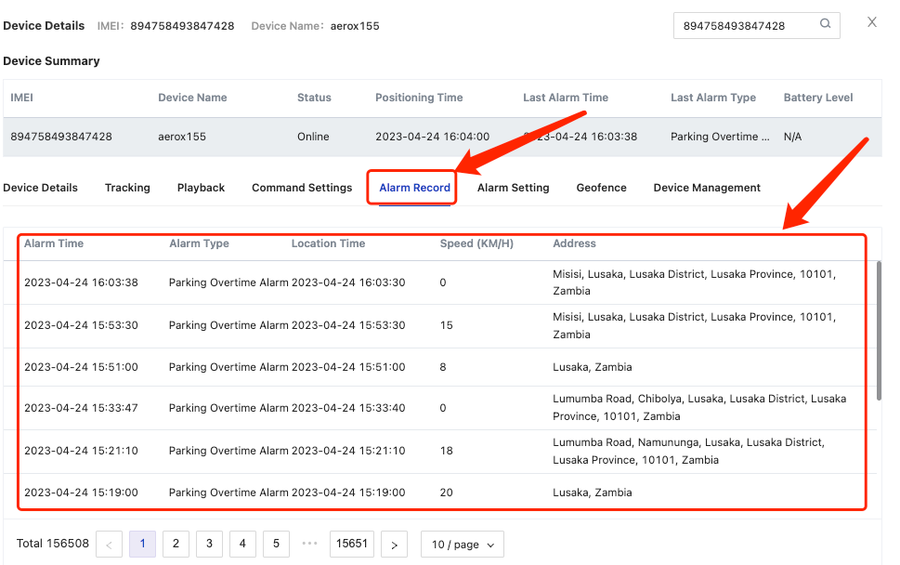

2.2. Single device alarm record on the details page

3. View positioning

3.1. Monitoring page device positioning

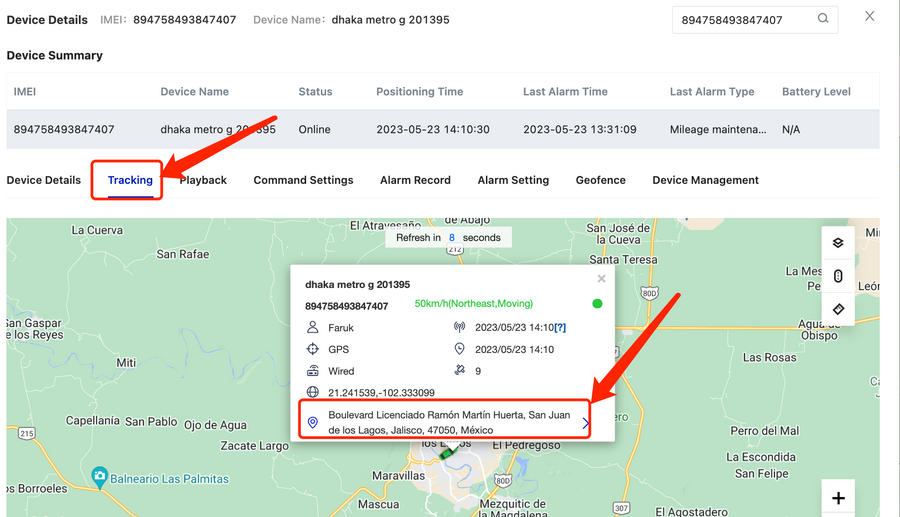

3.2. Tracking and positioning on the details page

4. Equipment

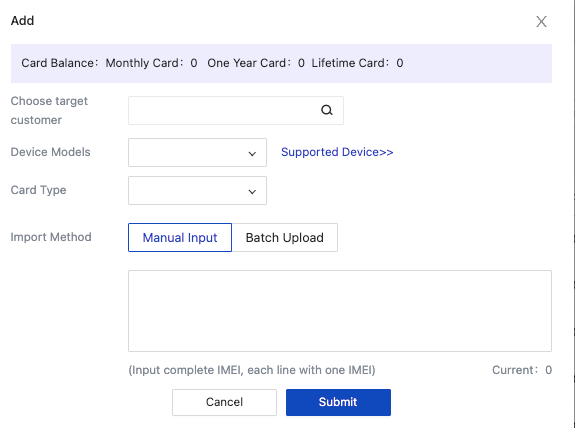

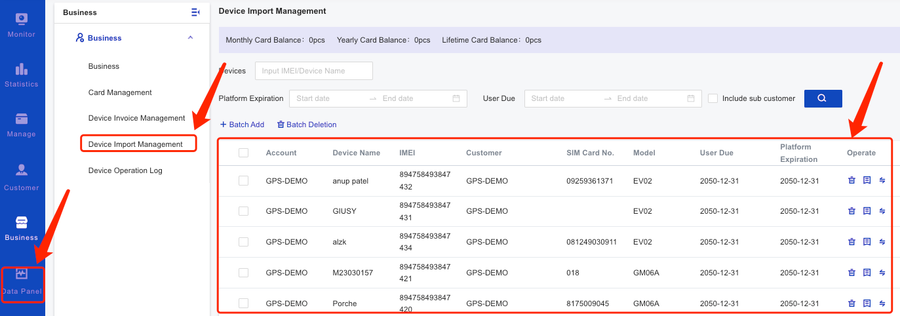

4.1. Device addition path: Dealer management-Three-party device management-Batch addition, select customers, device models, recharge card types, import methods, etc.

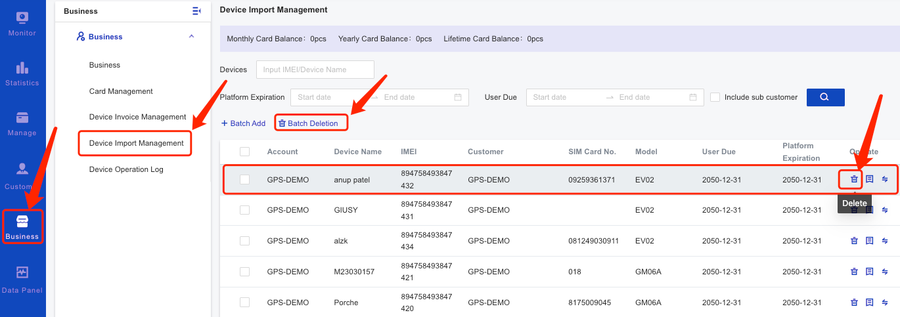

4.2. Device deletion path: dealer management-three-party device management-batch delete, third-party devices can be deleted

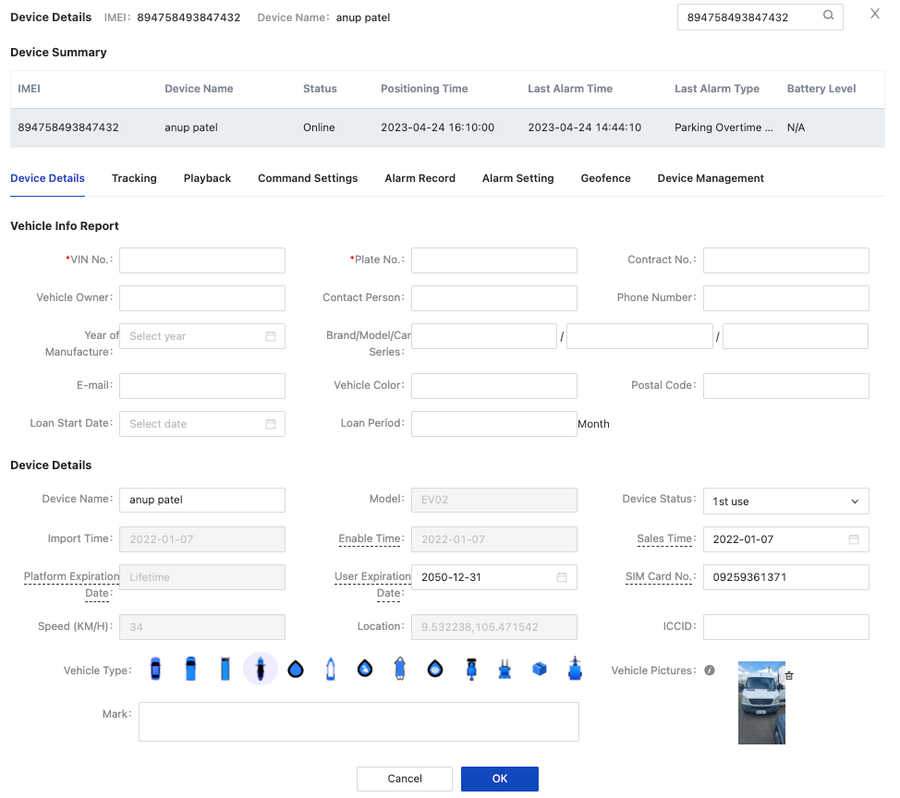

4.3. Equipment change path: dealer management - third-party equipment management - equipment details modification

You can modify the device name, vehicle identification code, license plate number and other content.

4.4. Device query path: dealer management-three-party device management, all devices are displayed by default

5. Customer additions, deletions and modifications

5.1. Path for new customers: customer - new customer

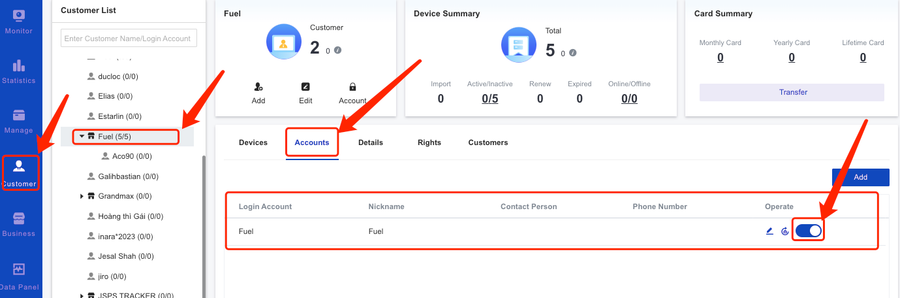

5.2. Customer disabled path:

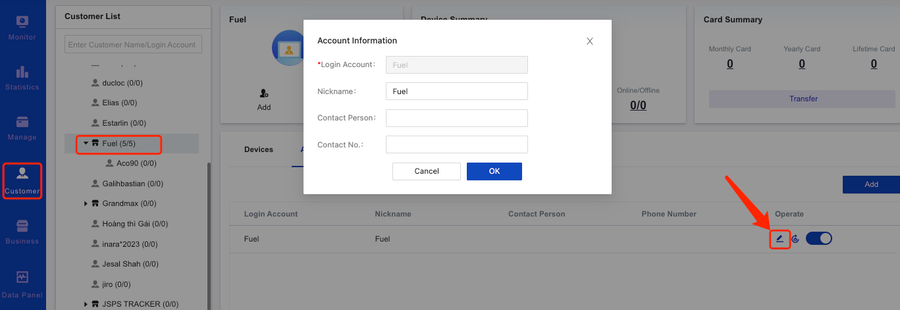

5.3. Customer change path:
